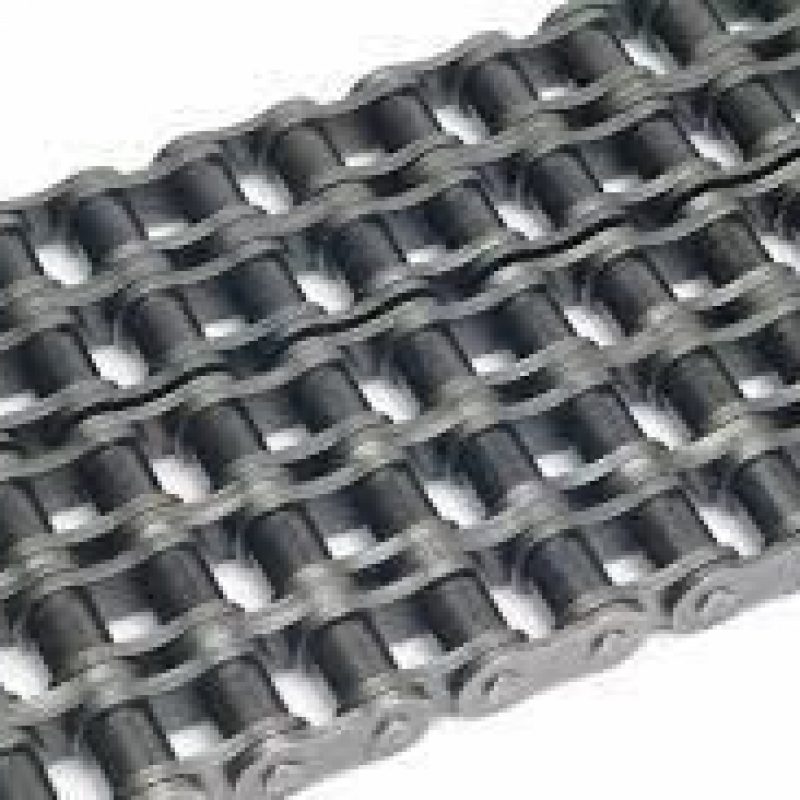

科艾傳動油田滾子鏈，為確保這些鏈條高的可靠性，零件的加工技術顯得至關重要，相比于其它鏈條的生產制造，具有以下特性：
1、鏈板：更寬的腰部尺寸，提高鏈板疲勞強度 ；
2、更高等級的合金鋼材料，嚴格控制化學成分，獲得一致的熱處理結果 ；
3、熱處理后鋼球擠孔，預壓應力的存在獲得最佳的抗裂紋延展能力 ；
4、過盈配合的連接鏈板的孔口帶成形錐角，方便客戶安裝，但不減弱其抗疲勞性能；
5、銷軸、套筒、滾子，優化的碳氮共滲微變形處理工藝，銷軸保持近乎完美的直線度；
6、擠壓成型的套筒和滾子，具有更高的圓度、同軸度和表面粗糙度 ；
7、爐內氣氛準確檢測和控制的熱處理設備；

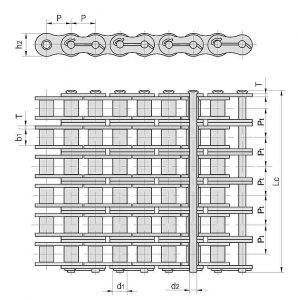

| ANSI 鏈號 | 鏈號 | 節距 | 節距 | 滾子直徑 | 內節內寬 | 銷軸直徑 | 銷軸長度 | 內鏈板高度 | 鏈板厚度 | 排距 | 極限拉伸載荷 | 每米長重 |
| P | P | dl max | b1 min | d2 max | Lc max | h2 max | T max | Pt | Q min | q | ||
| mm | inch | mm | mm | mm | mm | mm | mm | mm | kN/LB | kq/m | ||
| 80 | 16S-1 | 25.4 | 1 | 15.88 | 15.75 | 7.92 | 37.55 | 24.1 | 3.25 | 55.6/12500 | 2.60 | |
| 100 | 20S-1 | 31.75 | 11/4 | 19.05 | 18.9 | 9.53 | 44.3 | 30.0 | 4.0 | 86.87/19500 | 3.91 | |
| 120 | 24S-1 | 38.1 | 11/2 | 22.23 | 25.22 | 11.10 | 54.4 | 36.2 | 4.8 | 125.1/28100 | 5.62 | |
| 140 | 28S-1 | 44.45 | 13/4 | 25.40 | 25.22 | 12.70 | 59.0 | 42.2 | 5.6 | 170.27/38300 | 7.50 | |
| 160 | 32S-1 | 50.8 | 2 | 28.58 | 31.55 | 14.27 | 69.6 | 48.2 | 6.4 | 222.4j/50000 | 10.10 | |
| 180 | 36S-1 | 57.15 | 21/4 | 35.71 | 35.48 | 1.7.46 | 78.6 | 54.3 | 7.2 | 281.47/63300 | 13.45 | |
| 200 | 40S-1 | 63.5 | 21/2 | 39.68 | 37.85 | 19.85 | 87.2 | 60.3 | 8.0 | 347.5/78100 | 16.15 | |
| 80-2 | 16S-2 | 25.4 | 1 | 15.88 | 15.75 | 7.92 | 66.8 | 24.1 | 3.25 | 29.29 | 111.2/25000 | 5.15 |
| 100-2 | 20S-2 | 31.75 | 11/4 | 19.05 | 18.9 | 9.53 | 80.5 | 30.1 | 4.0 | 35.76 | 173.74/39000 | |
| 120-2 | 24S-2 | 38.10 | 11/2 | 22.23 | 25.22 | 11.10 | 99.7 | 36.2 | 4.8 | 45.44 | 250.2/56200 | 11.70 |
| 140-2 | 28S-2 | 44.45 | 13/4 | 25.40 | 25.22 | 12.7 | 107.8 | 42.2 | 5.6 | 48.87 | 340.54/76600 | 15.14 |
| 160-2 | 32S-2 | 50.80 | 2 | 28.58 | 31.55 | 14.27 | 127.5 | 48.2 | 6.4 | 58.55 | 444.8/100000 | 20.14 |
| 180-2 | 36S-2 | 57.15 | 21/4 | 35.71 | 35.48 | 17.46 | 14.4.4 | 54.3 | 7.2 | 65.84 | 562.94/126600 | 29.22 |
| 200-2 | 40S-2 | 63.5 | 21/2 | 39.68 | 37.85 | 19.85 | 158.8 | 60.3 | 8.0 | 71.55 | 695/156200 | 32.24 |
| 80-3 | 16S-3 | 25.4 | 1 | 15.88 | 15.75 | 7.92 | 96.1 | 24.1 | 3.25 | 29.29 | 166.8/37500 | 7.89 |
| 100-3 | 20S-3 | 31.75 | 11/4 | 19.05 | 18.9 | 9.53 | 116.3 | 30.1 | 4.0 | 35.76 | 260.61/58500 | 11.77 |
| 120-3 | 24S-3 | 38.1 | 11/2 | 22.23 | 25.22 | 11.10 | 145.2 | 36.2 | 4.80 | 45.44 | 375.3K/4300 | 17.53 |
| 140-3 | 28S-3 | 44.45 | 13/4 | 25.40 | 25.22 | 12.70 | 156.8 | 42.2 | 5.6 | 48.87 | 510.81/114900 | 22.20 |
| 160-3 | 32S-3 | 50.8 | 2 | 28.58 | 31.55 | 14.27 | 186.6 | 48.2 | 6.4 | 58.55 | 667.2/15000 | 30.02 |
| 180-3 | 36S-3 | 57.15 | 21/4 | 35.71 | 35.48 | 17.46 | 210.2 | 54.3 | 7.2 | 65.84 | 844.41/189900 | 38.22 |
| 200-3 | 40S-3 | 63.5 | 21/2 | 39.68 | 37.85 | 19.85 | 230.4 | 60.3 | 8.0 | 71.55 | 1042.5/234300 | 49.03 |
| 230H-3 | 40HS-3 | 63.5 | 21/2 | 39.68 | 37.85 | 19.85 | 249.6 | 60.3 | 9.5 | 78.31 | 1042.5/234300 | 56.74 |
| ANSI鏈號 | 鏈號 | 節距Pitch | 節距 Pitch | 滾子直徑 | 內節內寬 | 銷軸直徑 | 銷軸長度 | 內鏈板高度 | 鏈板厚度 | 排距 | 極限拉伸載荷 | 每米長重 |
| ANSI Chain NO | Chain N0. | p | p | d1 max | b1 min | d2 max | Lc max | h2 max | T max | Pt | Q min | q |
| mm | inch | mm | mm | mm | mm | mm | mm | mm | KN/LB | kg/m | ||
| 80-4 | 16S-4 | 25.4 | 1 | 15.88 | 15.75 | 7.92 | 122.9 | 24.1 | 3.25 | 29.29 | 222.4/50000 | 10.24 |
| 100-4 | 20S-4 | 31.750 | 11/4 | 19.05 | 18.90 | 9.53 | 151.5 | 30.1 | 4 | 35.76 | 347.48/78000 | 15.39 |
| 120-4 | 24S-4 | 38.1 | 11/2 | 22.23 | 25.22 | 11.10 | 190.6 | 36.2 | 4.8 | 45.44 | 500.4/112400 | 22.19 |
| 140-4 | 28S-4 | 44.45 | 13/4 | 25.40 | 25.22 | 12.70 | 205.7 | 42.2 | 5.6 | 48.87 | 681.08/153200 | 29.63 |
| 160-4 | 32S-4 | 50.8 | 2 | 28.58 | 31.55 | 14.27 | 245.2 | 48.2 | 6.4 | 58.55 | 889.6/200000 | 39.94 |
| 200-4 | 40S-4 | 63.5 | 21/2 | 39.68 | 37.85 | 19.85 | 302.0 | 60.3 | 8 | 71.55 | 1390/312400 | 63.6 |
| 80-5 | 16S-5 | 25.4 | 1 | 15.88 | 15.75 | 7.92 | 152.2 | 24.1 | 3.25 | 29.29 | 278/62500 | 12.79 |
| 100-5 | 20S-5 | 31.75 | 11/4 | 19.05 | 18.9 | 9.53 | 187.8 | 30.1 | 4 | 35.76 | 434.35/97500 | 19.22 |
| 120-5 | 24S-5 | 38.1 | 11/2 | 22.23 | 25.22 | 11.1 | 236.1 | 36.2 | 4.8 | 45.44 | 625.5/140500 | 27.7 |
| 140-5 | 28S-5 | 44.45 | 13/4 | 25.4 | 25.22 | 12.7 | 254.6 | 42.2 | 5.6 | 48.87 | 851.35/193486 | 39.2 |
| 160-5 | 32S-5 | 50.8 | 2 | 28.58 | 31.75 | 14.27 | 303.3 | 48.2 | 6.4 | 58.55 | 112/252724 | 52.4 |
| 80-6 | 16S-6 | 25.4 | 1 | 15.88 | 15.75 | 7.92 | 181.5 | 24.1 | 3.25 | 29.29 | 333.6/75000 | 15.34 |
| 100-6 | 20S-6 | 31.75 | 11/4 | 19.05 | 18.9 | 9.53 | 223.6 | 30.1 | 4 | 35.76 | 521.22/117000 | 23.05 |
| 120-6 | 24S-6 | 38.1 | 11/2 | 22.23 | 25.22 | 11.1 | 281.6 | 36.2 | 4.8 | 45.44 | 750.6/168600 | 33.24 |
| 140-6 | 28S-6 | 44.45 | 13/4 | 25.4 | 25.22 | 12.7 | 303.4 | 42.2 | 5.6 | 48.87 | 1021.62/229800 | 44.38 |
| 160-6 | 32S-6 | 50.8 | 2 | 28.58 | 31.55 | 14.27 | 362.3 | 48.2 | 6.4 | 58.55 | 133.4/300000 | 59.83 |
| 200-6 | 40S-6 | 63.5 | 21/2 | 39.68 | 37.85 | 19.85 | 445 | 60.3 | 8 | 71.55 | 2085/468600 | 95.23 |
| 80-8 | 16S-8 | 25.4 | 1 | 15.88 | 15.75 | 7.92 | 240 | 24.1 | 3.25 | 29.29 | 444.8/100000 | 20.44 |
| 100-8 | 20S-8 | 31.75 | 11/4 | 19.05 | 18.9 | 9.53 | 295.1 | 30.1 | 4 | 35.76 | 694.96/156000 | 30.71 |
| 120-8 | 24S-8 | 38.1 | 11/2 | 22.23 | 25.22 | 11.1 | 372.4 | 36.2 | 4.8 | 45.44 | 1000.8/224800 | 44.28 |
| 140-8 | 28S-8 | 44.45 | 13/4 | 25.4 | 25.22 | 12.7 | 401.1 | 42.2 | 5.6 | 48.87 | 1362.16/309578 | 62.21 |
